Explosion-Proof Electric Heater

Home 万森 · 产品 Explosion-Proof Electric Heater Molten salt electric heater

Molten salt electric heater

Functional Characteristics Specification Parameter

It is widely used in pharmaceutical, petroleum, chemical, pigment, resin, food and other industries, and is applied in the explosion-proof place of Zone II of the factory. The explosion-proof grade can reach ExdIICT1-4. At the same time, it is equipped with intelligent temperature control cabinet to meet the requirements of users in controlling heating temperature. Molten salt electric heater is an internationally popular high quality long life electric heating device. It is used to raise, heat and heat the flowing liquid and gaseous medium. When the heating medium is heated by the electric heater under pressure, the fluid thermodynamic principle is used to evenly remove the huge heat generated in the work of the electric heating element, so that the temperature of the heated medium reaches the user's process requirements.
Rated voltage：220V、380V
Nominal power：10-500KW
Explosion-proof grade：ExdⅡCT1-4
Maximum outlet temperature： Temperature control method：Automatic temperature control
Temperature control accuracy：±1℃
Power range： Power error range： Dielectric strength： Heating characteristics： Power adjustment factor： Temperature rating： Explosion-proof grade： Whether flame retardant： Ambient temperature： Place of use： Structure type：

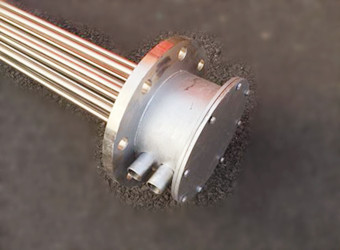

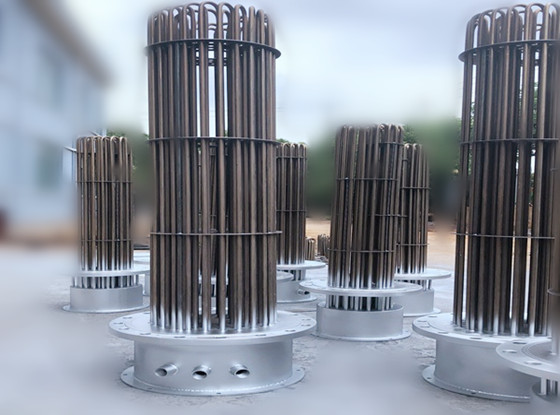

The molten salt electric heater is also called a salt salt furnace or a saltpeter tank. The special tubular electric heating element is combined with the flange bundle to form a heat supply integral with the pressure vessel, and the nitrate salt is heated to melt the nitrate salt as a heating medium. Generally, this heating method is integrated with the molten salt tank. After the nitrate salt at normal temperature is poured into the molten salt bath, it is preheated by a small amount of electric heating elements in the molten salt tank to make it liquid, and then melted. The salt pump extracts the molten salt into the internal flow of the heater, further warms the molten salt, and reaches the outlet of the molten salt heater, which has basically completed the heating, so that the user's heating equipment forms a circular whole with the continuous flow. Heating it to ensure the user's process temperature is simple, safe and pollution-free, and is an efficient heating method.
