Explosion-Proof Electric Heater
Explosion-Proof Electric Heater
Home 万森 · 产品 Explosion-Proof Electric Heater Fluid electric heater

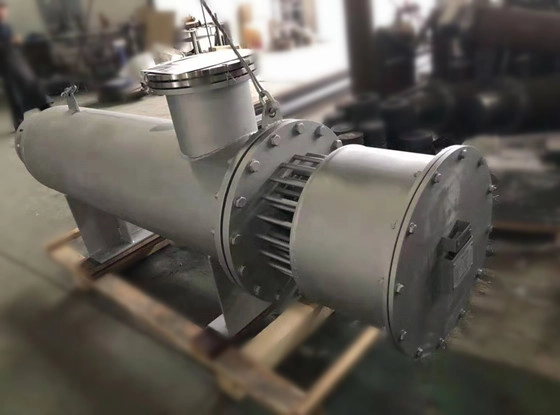

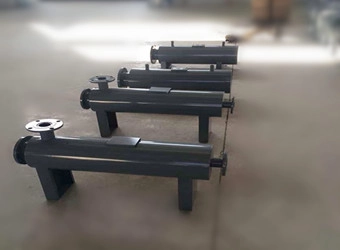

Fluid electric heater
Functional Characteristics Specification Parameter
  • During operation, the low-temperature fluid medium enters its input port under the action of pressure through the pipeline, along the specific heat exchange flow path inside the electric heating vessel, and uses the path designed by the fluid thermodynamics principle to take away the high-temperature heat energy generated in the work of the electric heating element. The temperature of the heated medium is raised, and the electric heater outlet is obtained as a high temperature medium required by the process. The electric heater internal control system automatically adjusts the electric heater output power according to the temperature sensor signal of the output port, so that the medium temperature of the output port is uniform; when the heating element is overheated, the independent overheat protection device of the heating element immediately cuts off the heating power source to avoid Overheating of the heated material causes coking, deterioration, and carbonization. In severe cases, the heating element burns out, effectively extending the service life of the electric heater.
  • Rated voltage：220V、380V
    Explosion-proof grade：ExdⅡBT1-4
    Temperature control method：Automatic temperature control
    Temperature control accuracy：±1℃
A fluid electric heater is a type of electrical energy that is converted into heat to heat a material to be heated.
