Chemical special heater

Functional Characteristics Specification Parameter

It heats the gas to a very high temperature.
efficient.
The temperature rise and fall is fast, the adjustment is fast and stable, and it is suitable for automatic control.
Durable when not in violation of the rules of use.
Rated voltage：220V、380V
Nominal power： Explosion-proof grade：ExdⅡBT1-4
Maximum outlet temperature： Temperature control method：Automatic temperature control
Temperature control accuracy：±1℃
Power range： Power error range： Dielectric strength： Heating characteristics： Power adjustment factor： Temperature rating： Explosion-proof grade： Whether flame retardant： Ambient temperature： Place of use： Structure type：

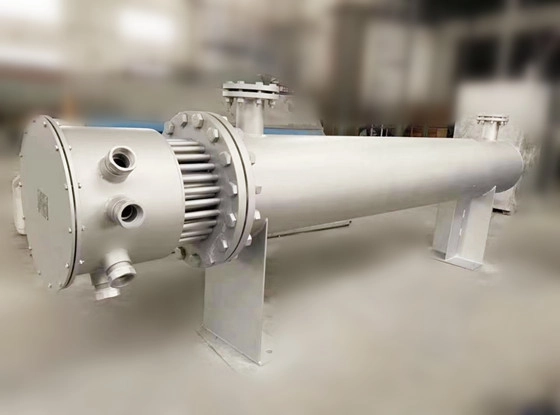

The chemical-specific electric heater is an electric heating device that mainly heats the gas stream. The heating element of the electric heater is a stainless steel electric heating tube, and a plurality of baffles (baffles) are arranged in the inner cavity of the heater to guide the gas flow direction, prolong the residence time of the gas in the inner cavity, thereby heating the gas sufficiently to make the gas Uniform heating to improve heat exchange efficiency. The heating element of the electric heater is a stainless steel heating tube which is filled with a heating wire in a seamless steel pipe, and the gap portion is filled with a magnesium oxide powder shrink tube having good thermal conductivity and insulation. When the current passes through the high temperature resistance wire, the generated heat is diffused to the surface of the heating tube by the crystalline magnesium oxide powder, and then transferred to the heated gas to achieve the purpose of heating.
