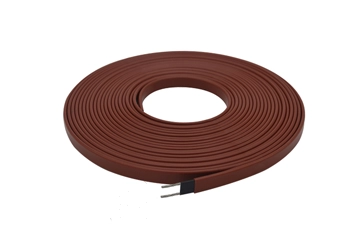

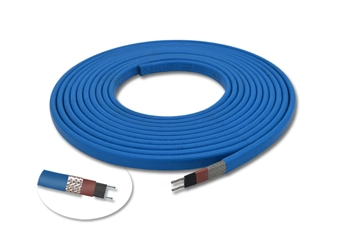

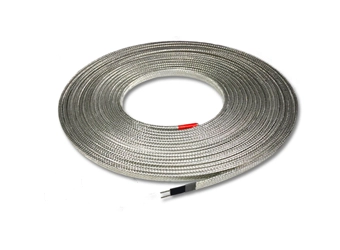

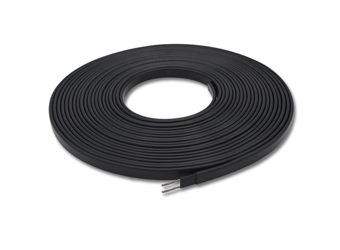

Self-limiting temperature heating cable
Functional Characteristics Specification Parameter
  • 1. The temperature of the heat tracing pipeline is uniform, safe and reliable.
    2, low installation and operation costs, easy maintenance
    3, save energy
    4. When the operation is intermittent, the temperature rises quickly.
    5, easy to automate management
    6, no environmental pollution
    7. Pipeline heating for complex pipelines and remote installations
    8, suitable for instrument box antifreeze
  • Rated voltage：220V、380V
    Explosion-proof grade：ExdⅡBT1-4
    Temperature control method：Automatic temperature control
    Temperature control accuracy：±1℃

Self-limiting temperature electric heating cable, also known as self-regulating electric heating cable, is the new generation of the only band-shaped constant temperature electric heating product, which consists of polymer conductive carbon particles and two parallel busbars with an insulating layer. The resistivity of the PTC heating element has Very high positive temperature coefficients and parallel to each other.
The self-limiting temperature electric heating cable can automatically limit the heating temperature and automatically adjust the output power according to the temperature of the heating body; it can be cut freely or used within a certain length; allow multiple overlapping and no high temperature overheating Easy maintenance and energy saving.
